3003 Aluminium Extrusion Multiport Tube Multi Channel Flat Pipe For Car Air Conditioner

MOQ:	500KG for mass quantity,sample quantity can also be arranged
Price:	negotiable
Standard Packaging:	Ply-wood box specialized for export
Delivery Period:	30days including tooling time
Payment Method:	T/T, L/C, Western Union
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO16949

Model Number

TR-CY002

Keyword:

Multi Channel Flat Aluminum Tube

Material:

Aluminium Alloy

Alloy:

Temper:

O,F,H111,H112

Shape:

Surface:

Zn Spraying / Without Zn Spraying

Width:

8-200mm

Application:

Radiators

Highlight:

Multiport Aluminium Extrusion Tube

Multi Channel Flat Aluminum Tube

1050 Alloy Aluminium Extrusion Tube

Product Description

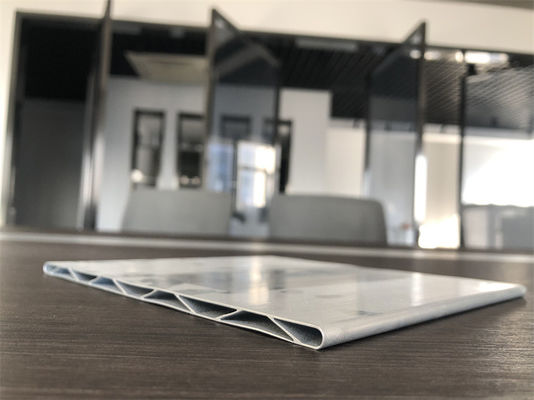

Aluminium Multiport Extrusion Tube Multiport Extruded Tube Multi Channel Flat Aluminum Tube

Also called multi-port extrusion, this flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio. Micro-channel tubes are available in various sizes and alloys, ensuring the best properties for the purpose required, and can be delivered with a coating, ready for assembly and oven brazing.

Specifications of Micro-channel tubes multi port tube aluminium extrusion die

1. 3003 and other series aluminum alloy
2. anodizing, polishing, turning, power coating, mill finish etc
3. OEM, ODM, or design by ourselves
4. CNC ,extruding machine, cold drawn machine, heating oven, straightening machine, cutting machine

Product Dimension Control Range of Aluminium Micro-channel Tube

Item	Range
Fixed length	200mm-4000mm
Width (micro-channel tubes)	8mm-60mm
Width (large multi-channel)	60-200mm
Thickness	1mm-5mm
Wall thickness	0.15mm-0.6mm
Thickness of zinc spraying	5g/㎡-15g/㎡
Thickness of flux coating	8g/㎡-25g/㎡

Application of Parallel flow microchannel flat tube :

1) Automotive air conditioner

2) Public air conditioner

3) Condenser

4) Evaporator

Characteristic of Parallel flow microchannel flat tube :

1) Low weight

2) Good thermal and electricity conductivity

3) Good corrosion resistance

4) Good forming and bending capability

5) Comply with ROHS

6) High cycle reuse value

7) Narrow tolerance range

8) High surface quality

3003 Aluminium Extrusion Multiport Tube Multi Channel Flat Pipe For Car Air Conditioner 4

3003 Aluminium Extrusion Multiport Tube Multi Channel Flat Pipe For Car Air Conditioner 5
