Cylindrical Battery Water Cooling Plate For Household Energy Storage

MOQ:	Sample available
Price:	Negotiation
Standard Packaging:	Ply-wood box specialized for export
Delivery Period:	30days including tooling time
Payment Method:	T/T
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001,ISO14000,IATF14969

Model Number

TR-CY138

Product Name:

Cylindrical Battery Water Cooling Channel

Type:

Serpentuator For Household Energy Storage

Process:

Aluminum Extrusion

Alloy:

Temper:

O-H112

Application:

EV Battery Pack

Structure:

Micro Channel Tube+connector

Package:

Cartons+pallets

Highlight:

Cylindrical Battery Water Cooling Plate

3003 Alu Water Cooling Plate

Household Energy Storage Aluminum Cooling Plate

Product Description

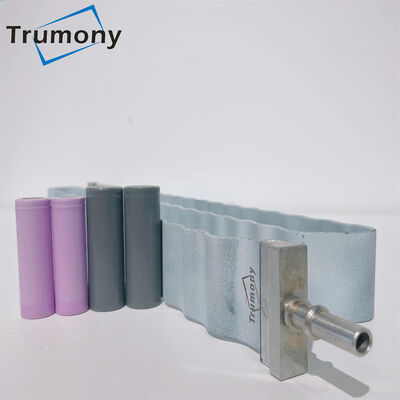

Cylindrical Battery Water Cooling Channel Serpentuator For Household Energy Storage

Water Liquid-Based Battery Cooling Tube Plate for Small Electric Pickup Truck

The aluminum cooling channels is designed for cylindrical cells. According to the size of the cells size , battery module layout and heat dissipation effect , we can design and make bettery solution for your electric cars. Water / glycol as the coolant flow in the micro channels. it will take away the excess heat and keep the battery module in safe temperature range to guarantee the driving safety.Whatever for four wheels commercial cars, heavy duty trucks, minibus, electric cargo trucks,we can give our suggestion for your battery cooling system design. And our advantage is tooling development, making all kinds of heat exchanger , assistance in parts design and one-stop solution service .

Specification

Item	Cooling ribbion for battery pack module
Size	As your design
Thickness	2.4mm,3mm
Application	cylindrical battery pack cooling
Service	Design, simulation, tooling ,prototype
Process	Aluminum extrusion
Liquid cooling type	cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate

Battery cooling system

1- Aluminum cooling cold plate for battery pack

2- Serpentine tube for new energy vehicle

3- Aluminum extrusion cooling plate for soft package battery pack

4- Aluminum stamping cold plate

*****Key point of design

1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells

2- Module boundary dimensions

3- Heat dissipation requirement

4- Design and prototype budget

5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation

With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:

1. Aid in cooling components design feasibility

2. Proven solutions for both prismatic and cylindrical cells

3. Capability in doing DVP with client

4. Fast support in Prototype making

FAQ :

1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .

2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.

3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.

Cylindrical Battery Water Cooling Plate For Household Energy Storage 0
