Electric Pickup Truck Aluminium Cooling Cooled Plate For Cylindrical Cells

MOQ: Sample available
Price: Negotiation
Standard Packaging: Ply-wood box specialized for export
Delivery Period: 30days including tooling time
Payment Method: T/T
Supply Capacity: 100000 tons yearly
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001,ISO14000,IATF14969
Model Number
TR-CY147
Product Name:
Aluminium Cooling Cooled Plate For Cylindrical Cells
Type:
Cooling Pipe
Process:
Extrusion
Alloy:
3003/6061
Temper:
O-H112
Application:
Cooling Tube For Electric Pickup Battery
Structure:
Micro Channel Tube+connector
Package:
Cartons+pallets
Highlight:

Extrusion Aluminum Cold Plate

,

Cylindrical Cells Aluminum Cold Plate

,

Cylindrical Cells Aluminum Cooling Plate

Product Description

Electric Pickup Truck Aluminium Cooling Cooled Plate For Cylindrical Cells



Liquid cooling is the most popular cooling technology. It uses a liquid coolant such as water, a refrigerant, or ethylene glycol to cool the battery. The liquid goes through tubes, cold plates, or other components that surround the cells and carry heat to another location, such as a radiator or a heat exchanger. Components carrying the liquid prevent direct electrical contact between the cells and the liquid coolant.Trumony aluminum limited can provide liquid cooling tube for 18650 cells, 21700 batteries and 4680 battery module pack. To enlarge the cooling area .The cooling pipe are made by aluminum extrusion, bending and snake shaped forming via toolings. We can customize the serpentine tube as your battery module layout and ev battery pack baundary size .Except the aluminum cooling pipe, we provide the water cooling plate, aluminum micro channels and roll bonded plate.



Specification

Item  Aluminum cooling tube for cylindrical cells
Size  As your design
Thickness 2.4mm,3mm
Application cylindrical battery pack cooling
Service  Design, simulation, tooling ,prototype
Process  Aluminum extrusion
Liquid cooling type  cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate




Battery cooling system



1- Aluminum cooling cold plate for battery pack

2- Serpentine tube for new energy vehicle

3- Aluminum microchannel cooling plate for soft package battery pack

4- Aluminum stamped cold plate





*****Key point of design

1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells

2- Module boundary dimensions

3- Heat dissipation requirement

4- Design and prototype budget

5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation





With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:

1. Aid in cooling components design feasibility

2. Proven solutions for both prismatic and cylindrical cells

3. Capability in doing DVP with client

4. Fast support in Prototype making





FAQ :


1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.



3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.



4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.

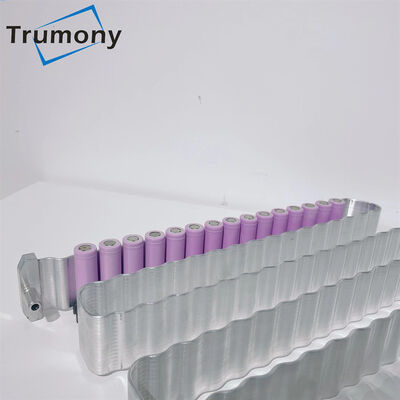

Electric Pickup Truck Aluminium Cooling Cooled Plate For Cylindrical Cells 0

Electric Pickup Truck Aluminium Cooling Cooled Plate For Cylindrical Cells 1

Electric Pickup Truck Aluminium Cooling Cooled Plate For Cylindrical Cells 2
