Product Details:
|
| Core Alloy: | 3003/3003MOD/3005 | Temper: | HO/H14/H14SR/H22/H16/H18 |
|---|---|---|---|
| Thickness: | 0.05-6.0mm | Width Of Coil: | 12-1300mm |
| ID: | 150mm/200mm/250mm/300mm/400mm/500mm | OD: | 1700mm Max. |
| Cladding Rate: | 4-30% | Application: | Radiator/condenser/evaporator/intercooler/oil Cooler/heater |
| Highlight: | aluminum foil coating,colored aluminum foil |
||

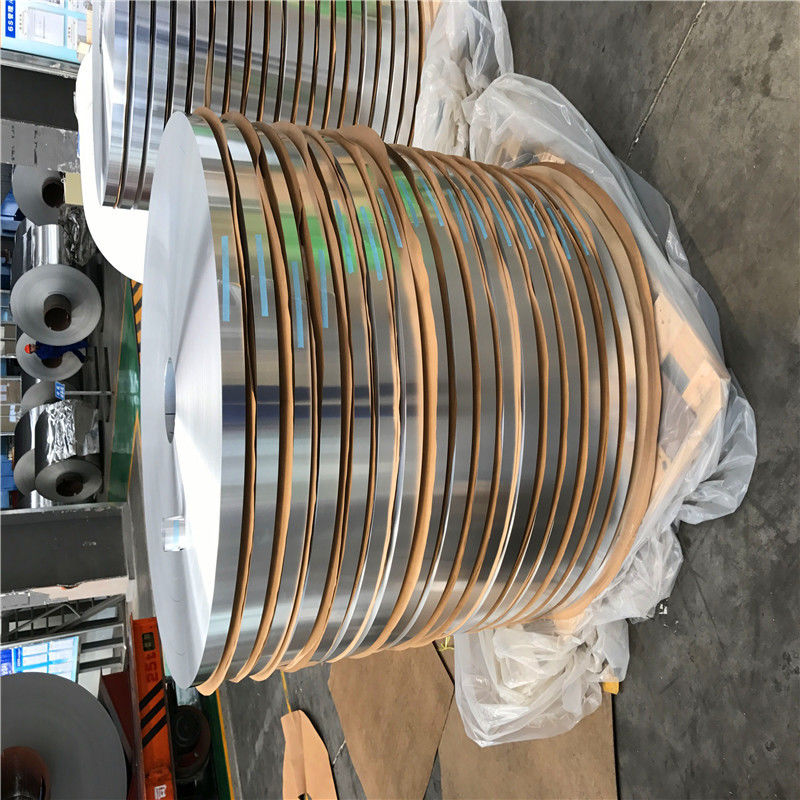

3003 Uncladded 0.08mm Aluminum Foil Roll For Automotive Heat Exchangers
We have started our production for aluminum heat exchange materials for more than 10 years. We are devoted to finding solutions and creating value for our customers. The main products are aluminum alloy cladding material and uncladded aluminum materials which are widely used for automobile heat exchangers,like radiator,condenser,evaporator,intercooler,oil cooler,heater and industrial heat exchangers,like electricity power radiator,air conditioner etc.
Our cladded/uncladded aluminum material highly recommended in the market for its stable mechanical properties,stable clad percentage and excellent corrosion resistance .
We have developed lots of new alloys for heat exchangers to meet the different technical requirements of customers. According to our continuous internal research and customer feedback, we have developed the our own series which are more suitable for customers than standard alloys. We have alloys with various properties for different applications, such as long life alloy for tubes,collapse resistant alloy for fins,high strength aging alloys for plates, etc.
Product specifications:
| Alloy | 3003/3005/3003mod(3003+1.5%Zn+Zr;3003+1%Zn etc) |
| Temper | HO/H14/H14SR/H22/H16/H18 |
| Thickness range | 0.05-6.0mm |
| Width range | 450-1300mm for plate;12-1300mm for coil |
| Length for aluminum plate | 500-6000mm |
| ID | 150mm/200mm/250mm/300mm/400mm/500mm |
| OD | 1700mm max. |
| Application | Radiator/condenser/evaporator/intercooler/oil cooler/heater and industrial heat exchangers,like electricity power radiator,air conditioner etc. |
Chemical composition:
1)3003:
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al |
| Max | 0.6 | 0.7 | 0.20 | 1.5 | － | 0.05 | 0.10 | 0.05 | － | － | Rem |
| Min | － | － | 0.05 | 1.0 | － | － | － | － | － | － | － |
2)3003+1.5%Zn+Zr
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al |
| Max | 1.0 | 0.7 | 0.15 | 1.8 | － | － | 2.0 | － | 0.20 | － | Rem |
| Min | 0.5 | － | － | 1.4 | － | － | 1.0 | － | 0.05 | － | － |
Our production process:From raw material to the finished products to meet customers' high quality requirement:
1)Melting
2)Scamping
3)Welding
4)Heating
5)Hot rolling
6)Cold rolling
7)Straightening
8)Annealing
9)Shearing
10)Packing

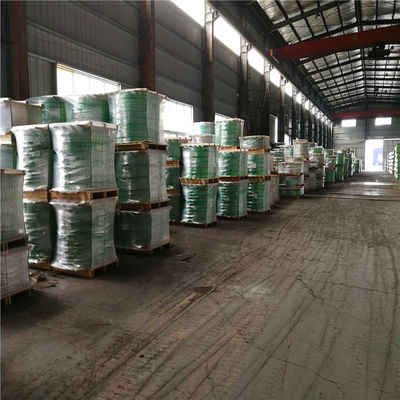

Packing:Fumigated pallet specialized for export
Delivery time:Normally 25-30days
Payment terms:T/T;L/C;D/A;D/P,or as per discussed with customers
MOQ:Normally 6 ton for one master coil,for the regular specifications,it can also be combined together.
Sample order can also be supported.
