Product Details:
|
| Item: | Aluminum Flat Tube | Alloy: | 1100, 3102, 3003, 6061 And Etc. |
|---|---|---|---|
| Temper: | O/H111/H112/H24 | Thickness Of Flat Tube: | 1.2mm~10mm |
| Wall Thickness: | 0.4~3 Mm | Width: | 12~40mm |
| Tolerance: | ±0.03/±0.05mm | Fixed Length: | Customized |
| Processing: | Extrusion, Cutting, Coating, Bending | Surface Treatment: | Mill Finished |
| Applications: | Air Conditioner, Oil Cooler, Condenser, Evaporator, Car Radiator, | Keywords: | Multiport Tube, Aluminum Parallel Flow Flat Tube, Extrusion Tube For Condenser, Microchannel Tube |
| Highlight: | EV Battery Cooling Aluminum Flat Tube,EV Battery Aluminium Flat Tube,Parallel Flow Aluminium Flat Tube |
||

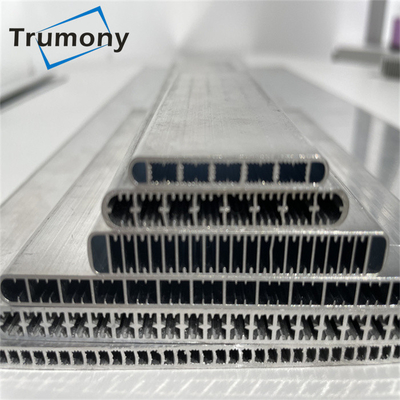

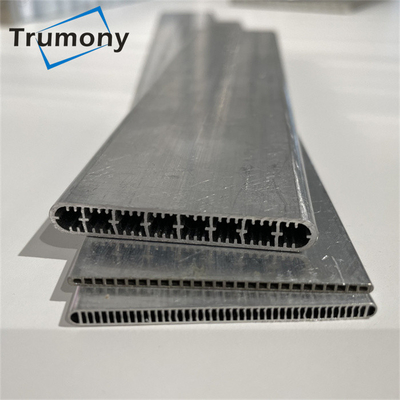

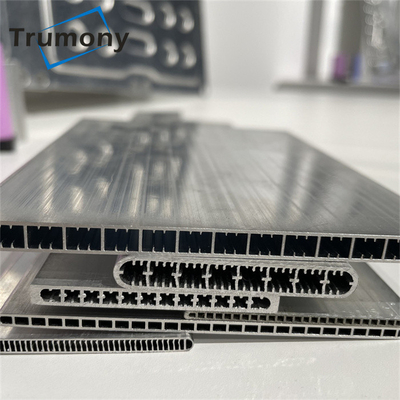

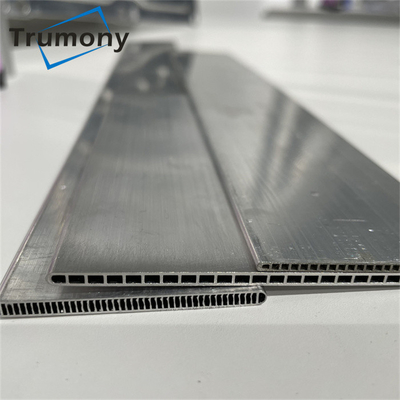

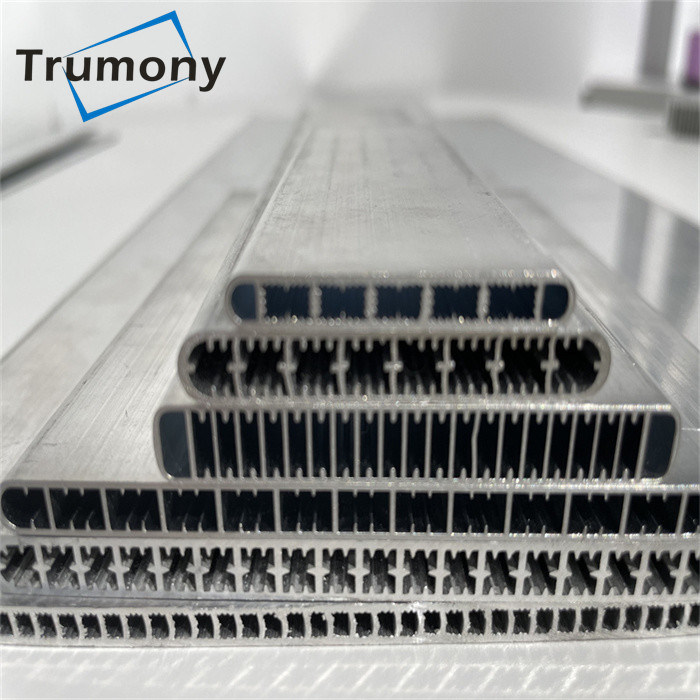

Parallel Flow Multi-port Aluminum Channel Tube for EV Battery Cooling
Aluminum micro channel tube is an important spare part for auto condenser and evaporator. Benifit from our own tooling centre, lots of ready molds are with us. Based on good channel flow design, coolant can run inside the tube and ensure high cooling efficiency. You can also design your own tube and send us drawing, we can do the custom manufacturing based on your drawing.
Products' Features:
Lower energy costs
Higer performance
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
Available in various size and alloys, ensuring the best properties for the purpose required
Dimension: Designed to customer specification
Process:
1. Hot extrusion from refined aluminum ingot
2. Zinc spraying
3. Automatic coil formation
4. Coiled material
5. Coil unfolding and adjust
6. Fixed-length tube formation
Specifications:
| Items | Range |
| Width | 8mm~40mm |
| Thickness | 1.2mm~10mm |
| Wall thickness | 0.15mm~0.8mm |
| Thickness of zinc spraying | 6g/mm²~15g/mm² |
| Fixed length | 200mm~4000mm |
| Number of ports | 3~30 |
It can be customized according to customers' request!
Mechanical Properties
| Mechanical property | ||||
| Alloy Code | Temper | Tensile Strength Rm(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| TR-151 Tube material | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3 | |
| H16 | 185-225 | 160 | ≥1 | |
| H18 | ≥185 | —— | ≥0.5 | |
| TR-166 Tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116 tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 | |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Our advantage
Trumony started up since 2006, we have rich experience in this industry in China;
We have our own development department for new material research;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
All parts of ladder is self manufacturing, we have price advantage.
We have good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Fast prototype sample making;
High performance cost ratio;
Good communication skills, and good service and understandings for customers
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
