Product Details:
|
| Name: | Thermal Pad | Thermal Conductivity: | 1.5-12W/m*K |
|---|---|---|---|
| Item No.: | 301-0150 | Hardness: | 5~80Shore 00 |
| Density: | 1.8-3.5g/cc | Voltage Resistance: | 6-10 KV/mm |
| Volume Resistivity: | 10^12 Ω*cm | Flame Rating: | V0 UL-94 |
| Color: | Gray/Customize | Application: | EV Battery Pack,Cooling Pad |
| Highlight: | 12W/mK Thermal Conductive Pad,Battery Pack Cooling Thermal Conductive Pad,New Energy Vehicle Batteries Conductive Pad |
||

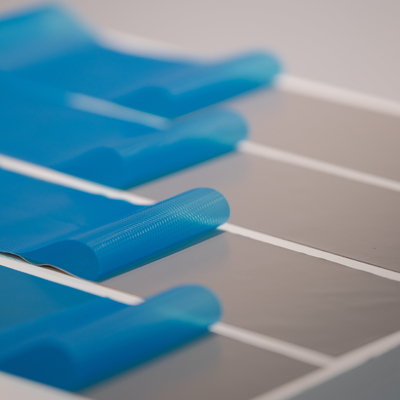

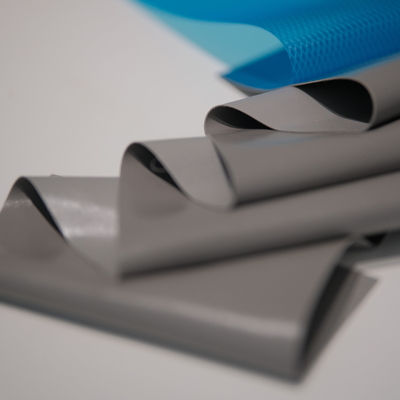

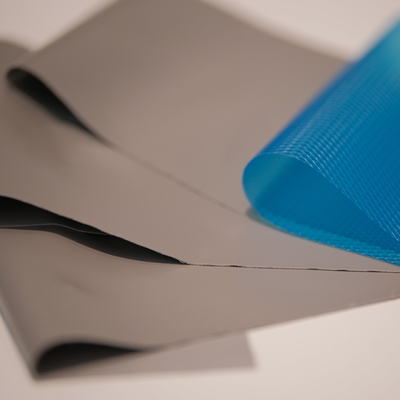

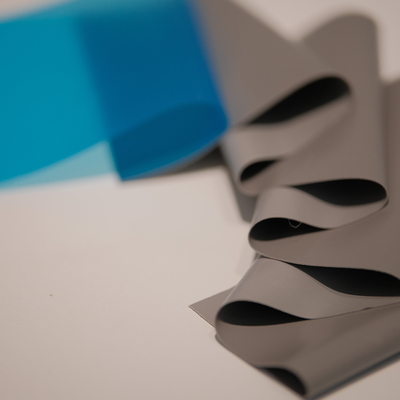

Thermal Pads Thermal Conductive Pad for New Energy Vehicle Batteries
| Thermal Pads Series | ||||||
| Item No. |
Thermal Conductivity (W/m*K)
|
Hardness (Shore 00) |
Density (g/cc) |
Voltage Resistance (KV/MM) |
Volume Resistivity (Ω*cm) |
Flame Rating (UL-94) |
| 301-0150 | 1.5 | 5~80 | 1.8 | 10 | 10^12 | V0 |
| 301-0200 | 2 | 5~80 | 2 | 10 | 10^12 | V0 |
| 301-0300 | 3 | 15~80 | 3.0 | 8 | 10^12 | V0 |
| 301-0400 | 4 | 15~80 | 3.3 | 8 | 10^12 | V0 |
| 301-0600 | 6 | 20~80 | 3.5 | 8 | 10^12 | V0 |
| 301-0800 | 8 | 30~80 | 3.6 | 8 | 10^12 | V0 |
| 301-1000 | 10 | 30~80 | 3.3 | 6 | 10^12 | V0 |
| 301-1200 | 12 | 30~80 | 3.2 | 6 | 10^12 | V0 |
1, the main purpose of the selection of Thermal pads is to reduce the contact thermal resistance between the surface of the heat source and the contact surface of the heat dissipation device, thermal conductive pads can fill the gap of the contact surface well;
2, the air is a bad conductor of heat will seriously hinder the transfer of heat between the contact surface, and the heat transfer Thermal pads between the heat source and the radiator can squeeze the air out of the contact surface;
3, with the supplement of heat-conducting Thermal pads, can make the contact surface between the heat source and the radiator better and full contact, really face-to-face contact, so that the reaction on the temperature can be as small as possible.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 110-30 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the thermal pads and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal pads?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
