Product Details:
|
| Alloy: | 4343/3003+0.5%Cu/5005 | Clad Layer: | 4343 , 5005 |
|---|---|---|---|
| Type: | Brazing | Application: | Radiator , Condenser , Cooling System |
| Size: | As Customer Request | Temper: | HO |
| Cladding Ratio: | 4 - 8% For Each Side | ||
| Highlight: | aluminium composite sheet,aluminium sheet metal |
||

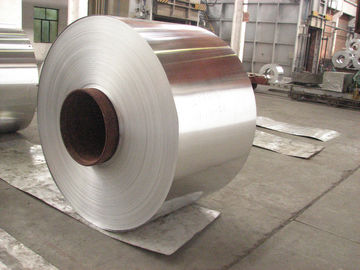

Alloy 4343/3003+0.5%Cu/5005 Temper HO Aluminium Heat Exchanger Sheets For Radiator Heater Plates
Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 |
Cladding Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8- 8.2 | 0.8 | 0.25 | 0.1 | - | 0.20 | － | 0.05 |
|
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.5-1.0 | - | 0.03 |
Produce capability
| Width(mm) | Thickness(mm) | Length(mm) | Inside Diameters(mm) | |
| Sheet | 500-1070 | 0.5-5.0 | 500-2500 | As customer request |
Strength of Plates
| Pre-Braze Strenght ( Mpa) | Post - Braze Strength ( Mpa ) |
|
Alloy
|
Temper | Yield Strength | Tensile Strength | Temsile Strength | Yield Strength |
|
4343/3003+0.5%Cu/5005
|
HO | > / = 45 | 120 -150 | 135 | 45 |
