Product Details:
|
| Alloy: | 3003 / 3102 | Temper: | H112 |
|---|---|---|---|
| Shape: | Flat | Application: | Automobile Radiator,condenser,evaporator |
| Highlight: | aluminium alloy tube,oval aluminum tubing |
||

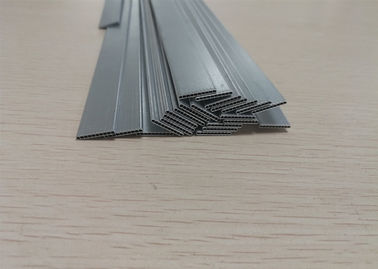

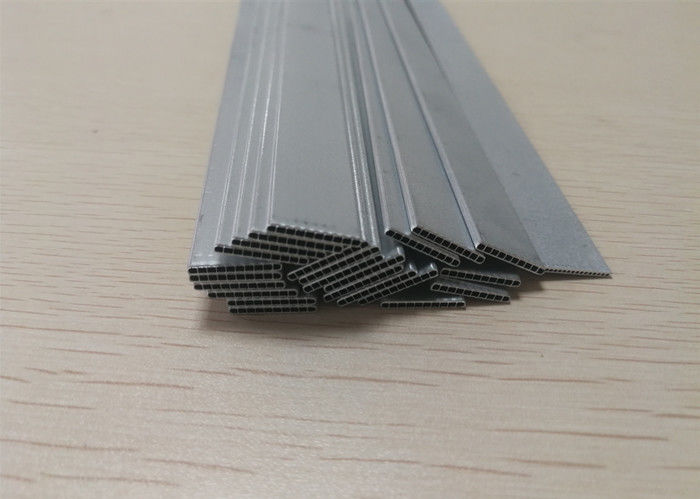

Automobile Flat Aluminum Tube Extrusion 3003 / 3102 High Recycling Value
Micro Multiport Extruded Aluminium Tube,is a kind of thin porous flat tubular material,which is treated by surface spraying zinc,using refining aluminum bar by hot extrusion.It is mainly used in all kinds of air conditioning refrigerants system.As a bearer of new environment-friendly refrigerant piping components,it's a key material applied in the new generation of parrallel flow microchannel air conditioning heat exchanger and the heat exchange system.
The Micro-multiport aluminum tube is also called micro-channel tube,is a highly refined quality product characterized by the following properties:
1. Low energy costs
2. High performance
3. Low space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
7. Low refrigerant fill
Besides increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
Extrusion Equipment Review:
1. Surface stains and foreign body removal.
2. Oxide aluminum rod surface removal.
3. Eddy current inspection.
4. Zinc spraying system.
Package: coils or Straight with fixed length
Surface Treatment : Zinc spray / without Zinc spray
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
The corrosion resistance performance
Salt spray test ≥750hours
The pressure resistance performance
| Automobile Condensers | Household Condensers | Evaporators |
| ≥9MPa | ≥13.5 MPa | ≥3.5 MPa |
